Note: it can be used in ProImage and also from ProScan (with or without the TIFF Navigators).

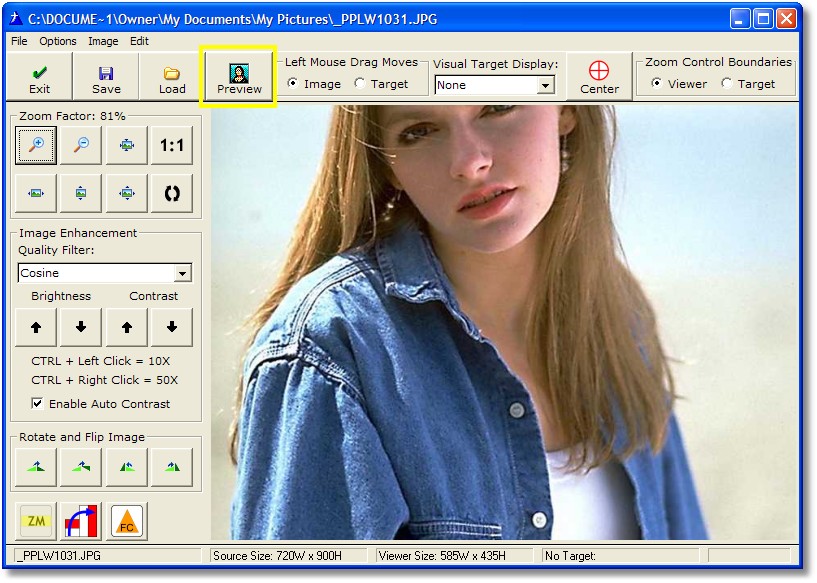

From the ProImage editor, you access it with the Preview button on the toolbar:

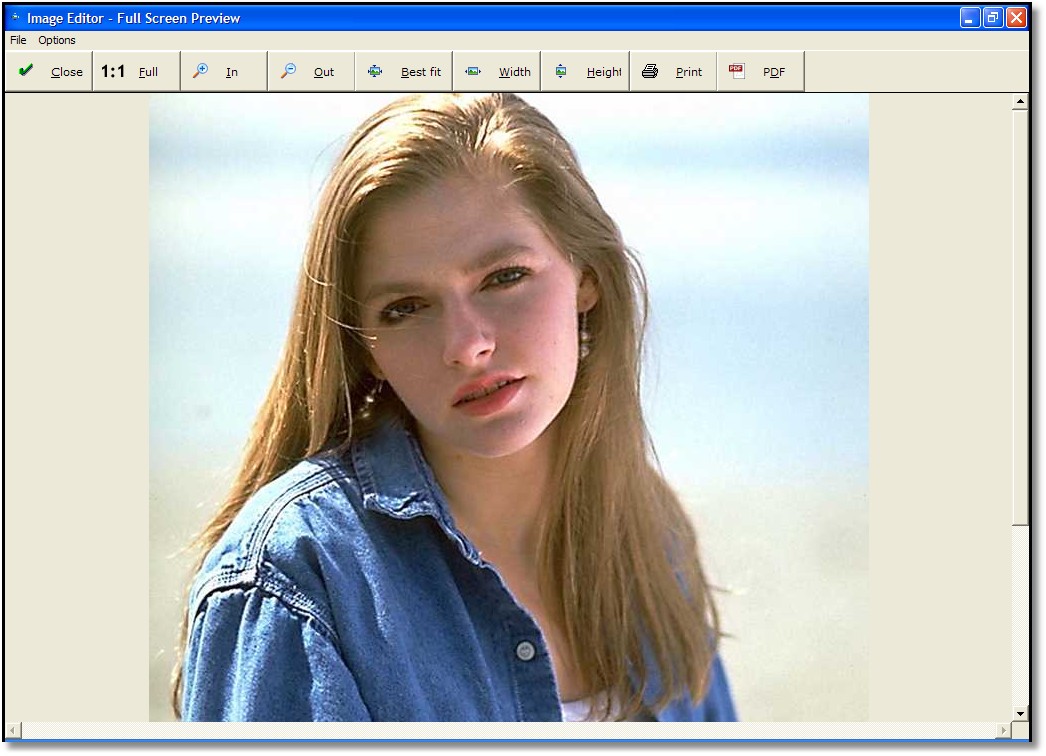

The image linked to the button (this can be a procedure parameter) will be displayed as shown:
Note: If the image will still not fit the previewer, horizontal and vertical scrollbars will appear.
You can access the PRINT and PDF options from the toolbar buttons:
This button lets you PRINT the current page.
This button creates a PDF of the current page.
You can also access these functions from the File pulldown menu:
You can also change the level of PDF compression from the Options pulldown menu:
Change PDF Compression
Opens a dialog where the user can change the level of PDF compression to use.
Note: see the ImageEx docs for details about the PDF compression settings.
NO Compression
Produces the largest files but the greatest level of detail (if required - not recommended unless you need it).
RLE Compression
A higher level of compression than no compression. It still allows color.
GROUP3 Compression
A high level of compression suitable for black and white documents
GROUP4 Compression
A higher level of compression suitable for black and white documents
JPEG Compression (default)
A midrange level of compression that allows color
