The Scan2PDF procedure has pulldown menu options that allow the user to start the scan and change settings.



The File menu



Start Scan

This is the same as clicking the Start Scan button.



Exit

This is the same as clicking the Cancel button.







The Options Menu

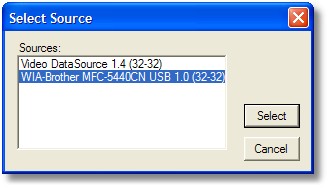

Change Scanner Source

Opens a dialog where the user can select a scanner to use.



Once a selection is made it appears in the Scanner Source field and remains the default selection the next time the procedure is used.





Change PDF Compression

Opens a dialog where the user can change the level of PDF compression to use.





Note: see the ImageEx docs for details about the PDF compression settings.



NO Compression

Produces the largest files but the greatest level of detail (if required - not recommended unless you need it).



RLE Compression

A higher level of compression than no compression.  It still allows color.



GROUP3 Compression

A high level of compression suitable for black and white documents



GROUP4 Compression

A higher level of compression suitable for black and white documents



JPEG Compression (default)

A midrange level of compression that allows color
