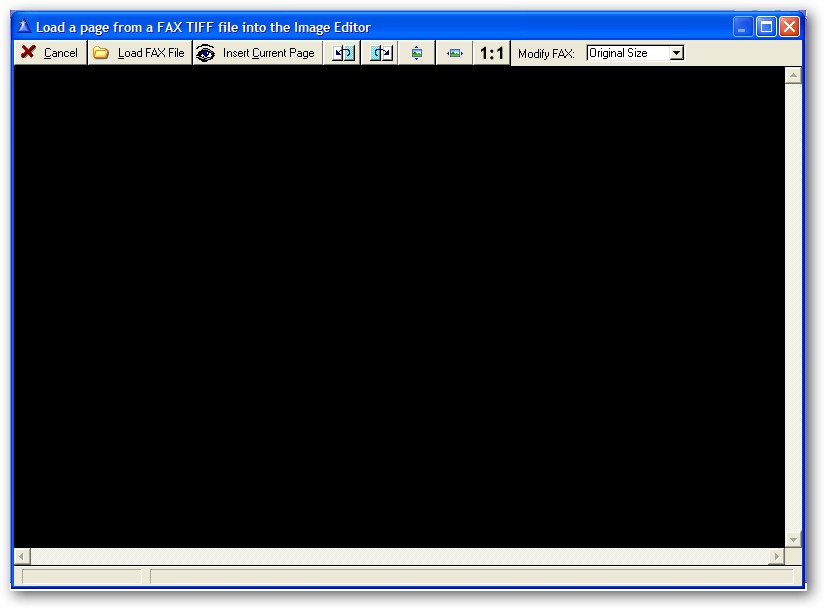

When the menu option is selected, the internal FAX TIFF viewer opens:



The options available on the FAX viewer toolbar are:



Cancel - return to the editor with no image.

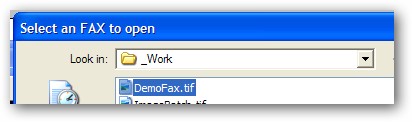

Load FAX File - load a FAX TIFF File from disk with the standard ImageEx picture dialog.



Insert Current Page - sends the current page displayed in the FAX TIFF viewer back to the editor.



Previous - moves backwards one page in the TIFF file.



Next - moves forward one page in the TIFF file.



Zoom to Height - resizes the page of the TIFF file to the height of the viewer.



Zoom to Width - resizes the page of the TIFF file to the width of the viewer.



Zoom 1:1 - display the page of the TIFF file at its original size.



Modify Fax - this drop down displays these three options:



Original Size - does not modify the fax.  This option is the default and use used when no repair is needed.



Letter Size - modifies the fax by redrawing it at the correct size for a Letter sized page.



Legal Size - modifies the fax by redrawing it at the correct size for a Legal sized page.



A4 Size - modifies the fax by redrawing it at the correct size for an A4 sized page.





NOTE - A sample fax that needs repair to Letter size is included with the demo apps.  It is called "DemoFax.tif"



When the sample FAX TIFF File is loaded, it is displayed in the viewer:



You can see that even though this fax originated from a Letter sized document, it appears "squashed" downward.

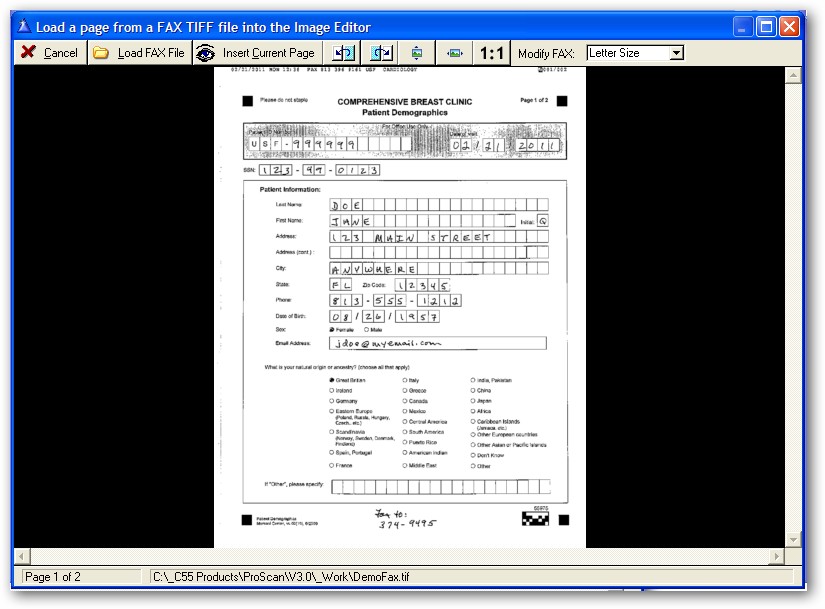

To repair the fax, all the user needs to do is click the drop down menu and select "Letter Size".  The page will be instantly redrawn as shown here:



Note 1: If you use the buttons or keyboard to page through the fax after selecting a repair option, the subsequent pages will be shown in the same mode.



Note 2: If you select the wrong size, it is no problem - just select a different one to change again.  Only the copy of the page in the viewer is affected during this stage.

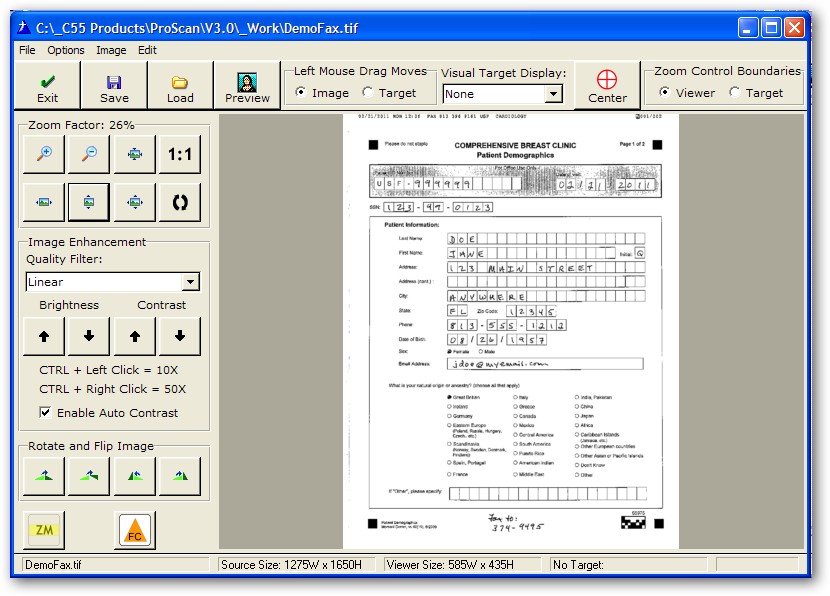

When you click the Insert Current Page button, the selected page of the FAX TIFF is returned to the editor.



If you have selected a repair option, then that modification is done to the image as it is placed in the editor.
